DIN 471 Retaining Rings for Shaft
Retaining Rings for Shaft DIN 471/D1400/DSH, External retaining rings, black oxide, size D10-D300 from China retaining rings Manufacturer
 |
 |
DIN 471 Retaining Rings for Shaft , External Retaining rings
Made of Spring steel, Black oxide
Standard: DIN 471/D1400/DSH
Size: D10mm-D300mm

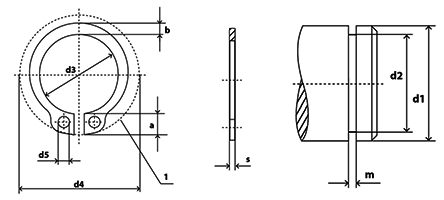

DIN 471 Retaining Rings for Shaft Specification as below:
| Size (d1) |
Thickness (s) |
Lug Height (а) |
Width (b) |
Hole Dia. (d5) |
Ring Dia. (d4) |
| 10 | 1 | 3.3 | 1.8 | 1.5 | 17 |
| 11 | 1 | 3.3 | 1.8 | 1.5 | 18 |
| 12 | 1 | 3.3 | 1.8 | 1.7 | 19 |
| 13 | 1 | 3.4 | 2.0 | 1.7 | 20.2 |
| 14 | 1 | 3.5 | 2.1 | 1.7 | 21.4 |
| 15 | 1 | 3.6 | 2.2 | 1.7 | 22.6 |
| 16 | 1 | 3.7 | 2.2 | 1.7 | 23.8 |
| 17 | 1 | 3.8 | 2.3 | 1.7 | 25 |
| 18 | 1.2 | 3.9 | 2.4 | 2 | 26.2 |
| 19 | 1.2 | 3.9 | 2.5 | 2 | 27.2 |
| 20 | 1.2 | 4 | 2.6 | 2 | 28.4 |
| 21 | 1.2 | 4.1 | 2.7 | 2 | 29.6 |
| 22 | 1.2 | 4.2 | 2.8 | 2 | 30.8 |
| 24 | 1.2 | 4.4 | 3.0 | 2 | 33.2 |
| 25 | 1.2 | 4.4 | 3.0 | 2 | 34.2 |
| 26 | 1.2 | 4.5 | 3.1 | 2 | 35.5 |
| 28 | 1.5 | 4.7 | 3.2 | 2 | 37.9 |
| 29 | 1.5 | 4.8 | 3.4 | 2 | 39.1 |
| 30 | 1.5 | 5 | 3.5 | 2 | 40.5 |
| 32 | 1.5 | 5.2 | 3.6 | 2.5 | 43 |
| 34 | 1.5 | 5.4 | 3.8 | 2.5 | 45.4 |
| 35 | 1.5 | 5.6 | 3.9 | 2.5 | 46.8 |
| 36 | 1.75 | 5.6 | 4 | 2.5 | 47.8 |
| 38 | 1.75 | 5.8 | 4.2 | 2.5 | 50.2 |
| 40 | 1.75 | 6 | 4.4 | 2.5 | 52.6 |
| 42 | 1.75 | 6.5 | 4.5 | 2.5 | 55.7 |
| 45 | 1.75 | 6.7 | 4.7 | 2.5 | 59.1 |
| 48 | 1.75 | 6.9 | 5 | 2.5 | 62.5 |
| 50 | 2 | 6.9 | 5.1 | 2.5 | 64.5 |
| 52 | 2 | 7 | 5.2 | 2.5 | 66.7 |
| 55 | 2 | 7.2 | 5.4 | 2.5 | 70.2 |
| 56 | 2 | 7.3 | 5.5 | 2.5 | 71.6 |
| 58 | 2 | 7.3 | 5.6 | 2.5 | 73.6 |
| 60 | 2 | 7.4 | 5.8 | 2.5 | 75.6 |
| 62 | 2 | 7.5 | 6 | 2.5 | 77.8 |
| 63 | 2 | 7.6 | 6.2 | 2.5 | 79 |
| 65 | 2.5 | 7.8 | 6.3 | 3 | 81.4 |
| 68 | 2.5 | 8 | 6.5 | 3 | 84.8 |
| 70 | 2.5 | 8.1 | 6.6 | 3 | 87 |
| 72 | 2.5 | 8.2 | 6.8 | 3 | 89.2 |
| 75 | 2.5 | 8.4 | 7 | 3 | 92.7 |
| 78 | 2.5 | 8.6 | 7.3 | 3 | 96.1 |
| 80 | 2.5 | 8.6 | 7.4 | 3 | 98.1 |
| 82 | 2.5 | 8.7 | 7.6 | 3 | 100.3 |
| 85 | 3 | 8.7 | 7.8 | 3.5 | 103.3 |
| 88 | 3 | 8.8 | 8 | 3.5 | 106.5 |
| 90 | 3 | 8.8 | 8.2 | 3.5 | 108.5 |
| 100 | 3 | 9.6 | 9 | 3.5 | 120.2 |
| 105 | 4 | 9.9 | 9.3 | 3.5 | 125.8 |
| 110 | 4 | 10.1 | 9.6 | 3.5 | 131.2 |
| 115 | 4 | 10.6 | 9.8 | 3.5 | 137.3 |
| 120 | 4 | 11 | 10.2 | 3.5 | 143.1 |
| 125 | 4 | 11.4 | 10.4 | 4 | 149 |
| 130 | 4 | 11.6 | 10.7 | 4 | 154.4 |
| 135 | 4 | 11.8 | 11 | 4 | 159.8 |
| 140 | 4 | 12 | 11.2 | 4 | 165.2 |
| 145 | 4 | 12.2 | 11.5 | 4 | 170.6 |
| 150 | 4 | 13 | 11.8 | 4 | 177.3 |
| 155 | 4 | 13 | 12 | 4 | 182.3 |
| 160 | 4 | 13.3 | 12.2 | 4 | 188 |
| 165 | 4 | 13.5 | 12.5 | 4 | 193.4 |
| 170 | 4 | 13.5 | 12.9 | 4 | 198.4 |
| 175 | 4 | 13.5 | 12.9 | 4 | 203.4 |
| 180 | 4 | 14.2 | 13.5 | 4 | 210 |
| 185 | 4 | 14.2 | 13.5 | 4 | 215 |
| 190 | 4 | 14.2 | 14 | 4 | 220 |
| 195 | 4 | 14.2 | 14 | 4 | 225 |
| 200 | 4 | 14.2 | 14 | 4 | 230 |
| 210 | 5 | 14.2 | 14 | 4 | 240 |
| 220 | 5 | 14.2 | 14 | 4 | 250 |
| 230 | 5 | 14.2 | 14 | 4 | 260 |
| 240 | 5 | 14.2 | 14 | 4 | 270 |
| 250 | 5 | 14.2 | 14 | 4 | 280 |
| 260 | 5 | 16.2 | 16 | 5 | 294 |
| 270 | 5 | 16.2 | 16 | 5 | 304 |
| 280 | 5 | 16.2 | 16 | 5 | 314 |
| 290 | 5 | 16.2 | 16 | 5 | 324 |
| 300 | 5 | 16.2 | 16 | 5 | 334 |
